Factory-direct architectural glazing, heavy-duty automatic shutters, and certified fire doors engineered to withstand NZ's extreme wind loads and coastal conditions.
Procuring commercial aluminum glazing, industrial shutters, and fire-rated door assemblies directly from Chinese manufacturers offers New Zealand developers, commercial builders, and tier-1 contractors a significant cost advantage—typically 35% to 50% capital expenditure savings compared to localized assembly. However, achieving successful project outcomes requires deep technical alignment with the New Zealand Building Code (NZBC), rigorous material specification, and verified quality assurance frameworks.
This technical guide provides structural specifiers, procurement officers, and architects with the engineering parameters necessary to import high-performance commercial doors from China into New Zealand without regulatory friction or site delays.
New Zealand's unique geographic location demands stringent performance criteria for building envelopes. Imported commercial door assemblies must demonstrate strict adherence to several mandatory standards:
Specifies structural wind loading, air infiltration, and water penetration resistance. Commercial storefront doors destined for high-wind coastal zones like Wellington or Northland require ultimate limit state (ULS) wind pressure ratings exceeding 2200 Pa to 2500 Pa.
Following recent legislative revisions, exterior commercial door assemblies must meet heightened thermal resistance thresholds (R-values). Standard monolithic aluminum profiles are no longer compliant for heated commercial spaces. Polyamide PA66 thermal breaks are essential.
All vision panels and frameless glass assemblies must utilize fully tempered or laminated safety glass certified to AS/NZS 2208. Toughened glass must undergo Heat Soak Testing (HST) to mitigate spontaneous breakage risks caused by nickel sulfide (NiS) inclusions.
Our manufacturing facility utilizes high-grade virgin 6063-T5 aluminum extrusions, precision-engineered thermal barriers, and international hardware suites tailored for severe marine environments (ISO 9223 Category C4/C5 corrosion zones).
| Technical Parameter | Standard Commercial Grade | Our NZBC H1 Compliant Specification | Engineering Significance for NZ Projects |
|---|---|---|---|
| Aluminum Alloy Profile | Recycled 6063-T5 (1.4mm wall) | Virgin 6063-T5 / T6 (2.0mm - 3.0mm wall thickness) | Eliminates structural flexing under gusting wind loads in Extra High NZS 3604 wind zones. |
| Thermal Break Technology | None / Pour & Debridge Resin | 24mm - 34mm Polyamide PA66-GF25 Strips | Delivers frame R-values > 0.45 m²K/W, preventing internal surface condensation and energy loss. |
| Surface Finish & Coating | Standard Powder Coating (50 microns) | AkzoNobel Interpon D2525 / PVDF 3-Coat System | Resists extreme UV degradation and salt spray corrosion across coastal NZ regions. |
| Glazing Seal & Gaskets | Standard PVC Gaskets | Vulcanized EPDM Dual-Dural Compound Seals | Ensures air leakage rates below 0.6 L/s·m² compliant with NZBC E2/AS1 weatherproofing. |
| Hardware & Lock Mechanisms | Generic Zinc Alloy Latches | German Siegenia / GU Heavy Duty Stainless Steel | Provides 100,000+ cycle operational lifespan and high burglar resistance (EN 1627 RC2/RC3). |
From urban retail developments in Auckland's CBD to wind-exposed hospitality hubs in Wellington and alpine tourism facilities in Queenstown, our door solutions are customized for local microclimates and structural demands.
High-traffic storefront entrance systems featuring continuous sub-framing, heavy-duty overhead concealed closers, and AS/NZS 2208 12mm clear toughened glass. Built to handle millions of foot-traffic cycles while maintaining a sleek, modern architectural aesthetic.
Wellington's severe wind gusts require engineered pressure-equalized drainage tracks and heavy-duty corner cleat crimping. Our structural aluminum swing and bifold doors feature heavy wind locks to eliminate rattle and water ingress during storm events.
Rebuild projects in Canterbury prioritize seismic resiliency and thermal isolation. Our industrial high-speed PVC zipper doors and steel roll-up shutters incorporate flexible mounting channels designed to accommodate structural deflection during seismic movement.
Extreme temperature differentials require maximum thermal envelope performance. We specify Argon-filled, Low-E double and triple insulated glass units (IGUs) within deep polyamide thermally broken aluminum frames to maintain indoor comfort and eliminate condensation.
Driven by the updated NZBC H1 energy ratings, non-thermal aluminum storefront systems are rapidly being phased out. Specifiers are demanding thermal break ratios that achieve overall door assembly U-values below 1.9 W/m²K (R-values > 0.52 m²K/W).

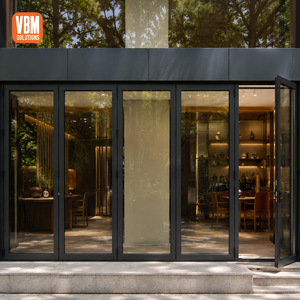

Cafes, restaurants, and event venues across the North and South Islands are adopting wide-span aluminum folding (bifold) and minimal sliding doors. Ultra-slim sightlines combined with flush-threshold tracks provide unobstructed access while maintaining weather tightness under driving rain.
Modern commercial developments favor door assemblies pre-wired for smart building automation. Our factory integrates concealed electromagnetic locks, sensor-driven automatic sliding operators, and access control interfaces during initial fabrication.
Bridging the gap between Chinese industrial manufacturing scale and New Zealand building standards compliance.
Our in-house engineering team translates architectural plans into fully detailed shop drawings, structural wind load calculations, and section details compatible with NZBC consent submissions.
Every commercial swing door, bifold panel, and fire assembly undergoes complete trial assembly in our factory. Frame squareness, hardware operation, seal compression, and glass fit are verified prior to export packing.
Goods are secured inside steel-reinforced, fully enclosed plywood crates with desiccants and moisture barriers, preventing salt air contamination or transit shock during sea transport to Auckland, Lyttelton, or Tauranga ports.
Our door systems are manufactured to meet or exceed NZS 4211 performance metrics and NZBC Clause H1 thermal efficiency requirements. We provide complete factory testing reports, glass certifications (AS/NZS 2208), structural wind load calculations, and producer statements (PS1 equivalent technical data) to assist your local structural engineer with Council consent documentation.
Standard manufacturing lead time is 3 to 5 weeks depending on profile complexity, custom glass specifications (such as Low-E coatings or gas fills), and fire-rating certifications. Direct sea shipping from China (Ningbo/Shanghai) to major NZ ports (Auckland, Tauranga, Lyttelton) takes approximately 14 to 21 days. Total door-to-port timeline averages 6 to 8 weeks.
Yes. We utilize premium architectural coatings from AkzoNobel Interpon and PPG. We can match any standard RAL color or specific New Zealand architectural palettes, including popular finishes like Matt Black, Charcoal, Titania, and Ironsand. All coastal projects receive marine-grade surface pretreatments to resist atmospheric oxidation.
New Zealand has strict biosecurity regulations. All our export packing materials strictly utilize ISPM 15 compliant heat-treated timber or non-coniferous engineered plywood crates stamped with official treatment markings. Clean, treated packaging guarantees smooth customs clearance at NZ border inspection points without quarantine delays.
Yes. Our commercial steel fireproof doors are tested for 1-hour, 2-hour, and 3-hour fire endurance under ISO 834 / BS 476-22 testing procedures, matching the performance criteria specified in NZBC C/AS2. Doors come equipped with UL-listed or CE-certified panic exit devices, magnetic door holders, and intumescent perimeter seals.
We provide a comprehensive 10-year structural warranty on aluminum extrusion profiles, a 10-year warranty on insulated glass units against seal failure/fogging, and a 5-year operational warranty on hardware mechanisms. Replacement components and hardware spares can be dispatched rapidly via air freight if required.
Contact our engineering sales team today to discuss your architectural drawings, structural specifications, and wholesale pricing for New Zealand commercial projects.
